Available templates

Current available templates are dust continuum observations of each system. Check the Quick tutorial to see how to use them. Alternatively, check the Create a template tutorial to add a new observation.

Click on the template name to download the template folder compressed in tar.gz format, and click on the reference to go to the ADS link of each publication.

Band 6

230 GHz, 1.3 mm

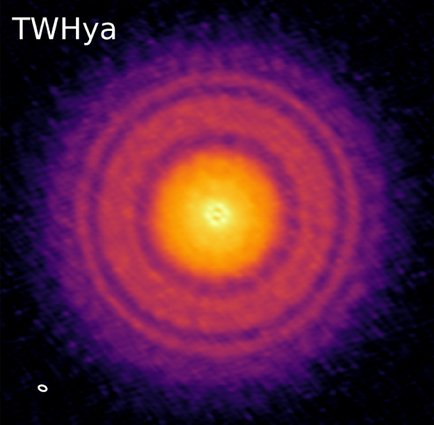

TW Hya

TWHya (226.3 MB)

Reference: Huang et al. 2018a

Distance: 60 pc
Inclination: 5.8 deg
PA: 151.6 deg
Angular resolution: 44 x 28 mas, robust -0.2
RA: 11h01m51.818s
Dec: -34d42m17.235s
Pixel size: 3 mas
Image size: 2000 px

ALMA programs:

  • 2013.1.00114.S
  • 2013.1.00387.S
  • 2015.A.00005.S

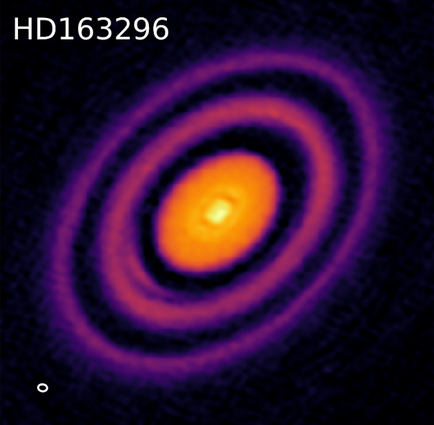

HD 163296

HD163296 (210.6 MB)

Reference: Isella et al. 2018

Distance: 101 pc
Inclination: 46 deg
PA: 133 deg
Angular resolution: 50 x 39 mas, robust -0.5
RA: 17h56m21.279s
Dec: -21d57m22.559s
Pixel size: 5 mas
Image size: 2000 px

ALMA programs:

  • 2013.1.00366.S
  • 2013.1.00601.S
  • 2016.1.00484.L

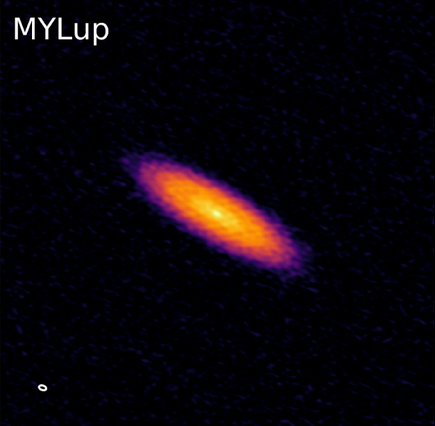

MY Lup

MYLup (319.1 MB)

Reference: Huang et al. 2018b

Distance: 157 pc
Inclination: 73.2 deg
PA: 58.8 deg
Angular resolution: 41 x 25 mas, robust 0.0
RA: 16h00m44.502s
Dec: -41d55m31.319s
Pixel size: 3 mas
Image size: 2000 px

ALMA programs:

  • 2016.1.00484.L

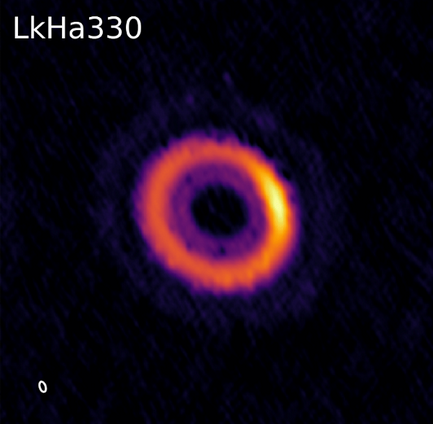

LkHa 330

LkHa330 (176.4 MB)

Reference: Pinilla et al. 2022

Distance: 318 pc
Inclination: 27.5 deg
PA: 49.2 deg
Angular resolution: 55 x 30 mas, robust 1.0
RA: 03h45m48.289s
Dec: 32d24m11.728s
Pixel size: 3 mas
Image size: 2000 px

ALMA programs:

  • 2018.1.01302.S

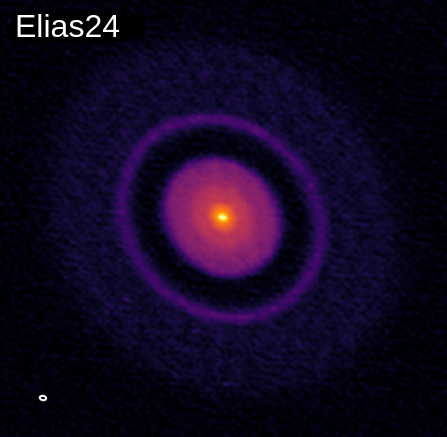

Elias 24

Elias24 (179.2 MB)

Reference: Huang et al. 2018b

Distance: 139 pc
Inclination: 29 deg
PA: 45.7 deg
Angular resolution: 34 x 23 mas, robust 0.0
RA: 16h26m24.0782s
Dec: -24d16m13.872s
Pixel size: 3 mas
Image size: 2000 px

ALMA programs:

  • 2013.1.00498.S
  • 2016.1.00484.L

Band 7

345 GHz, 0.87 mm

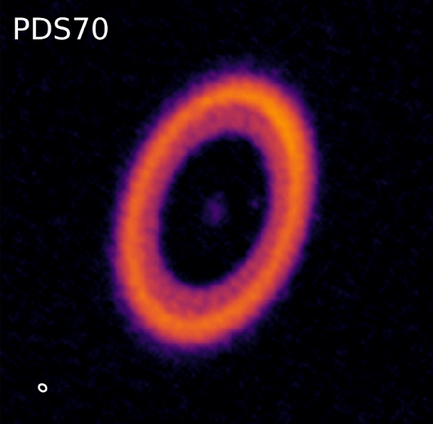

PDS 70

PDS70 (321.7 MB)

Reference: Benisty et al. 2021

Distance: 112 pc
Inclination: 49.5 deg
PA: 161 deg
Angular resolution: 44 x 36 mas, robust 0.5
RA: 14h08m10.108s
Dec: -41d23m52.992s
Pixel size: 5 mas
Image size: 2000 px

ALMA programs:

  • 2015.1.00888.S
  • 2017.A.00006.S
  • 2018.A.00030.S

Do you need a template that is not here?

Send me a message. If you have a measurement set, then a template can be created by following this tutorial.
